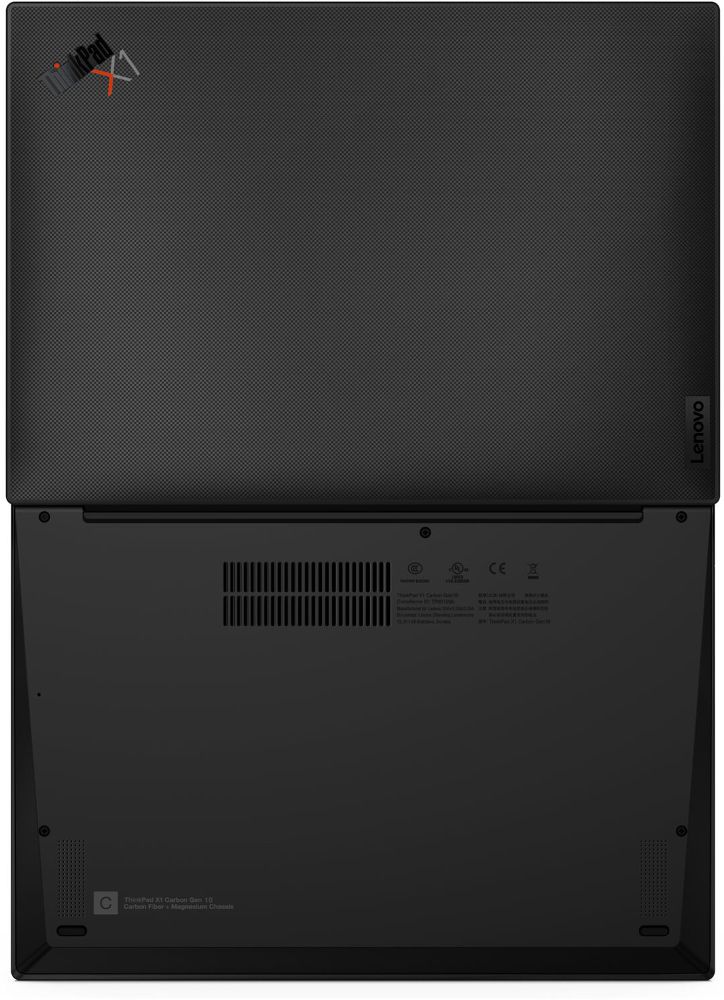

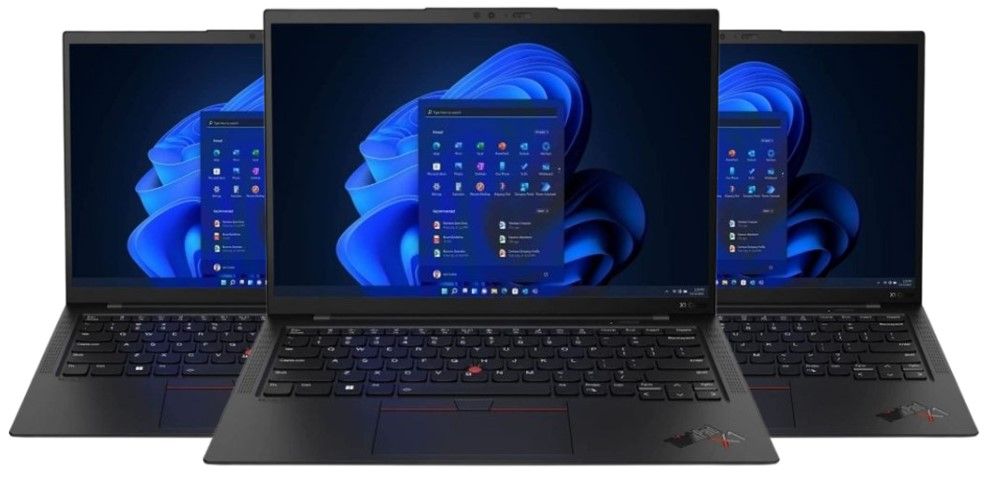

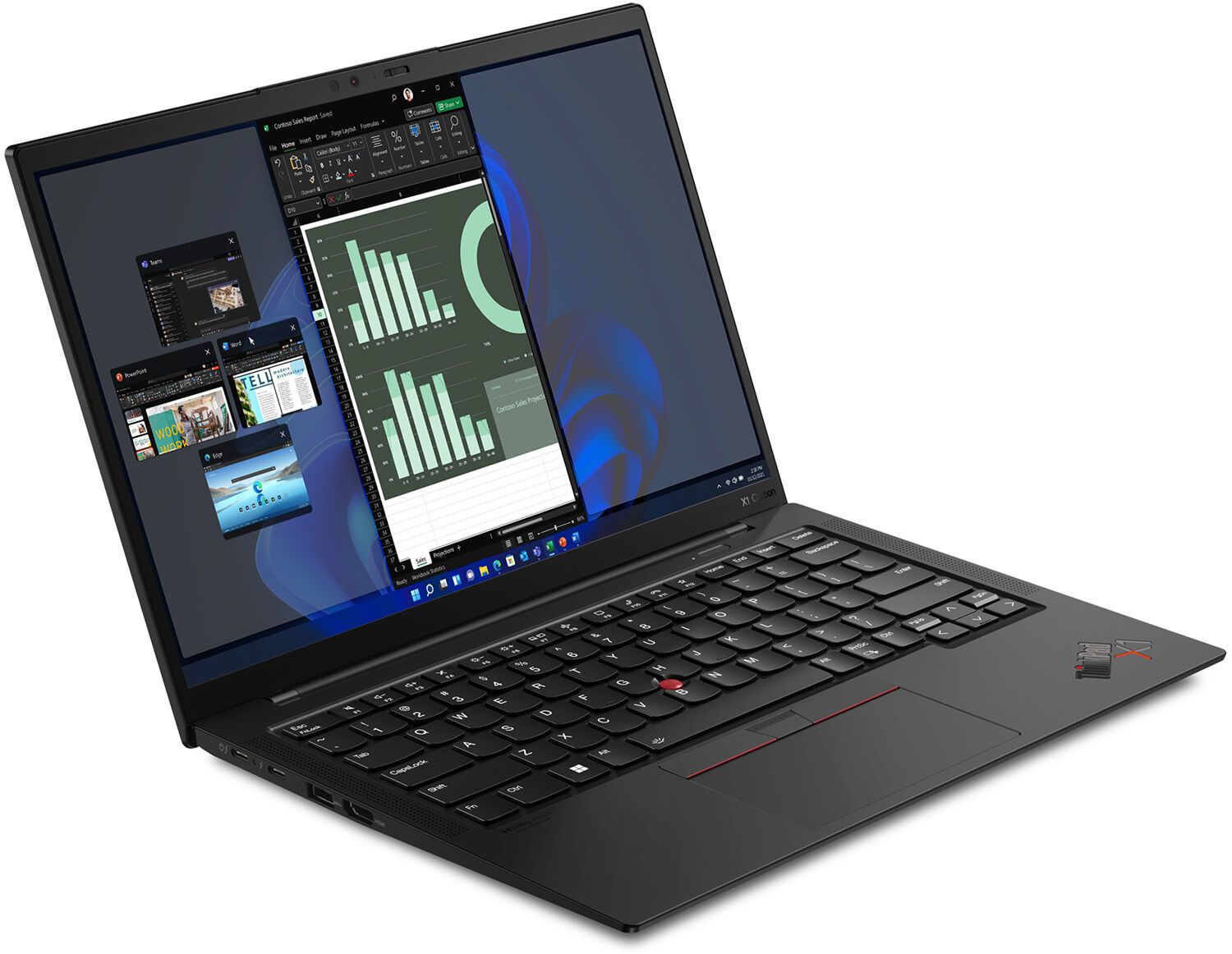

| Product name | Lenovo ThinkPad X1 Carbon Gen 10 Laptop (14-Inch) |
|---|
| Model Name | Lenovo ThinkPad X1 Carbon Gen 10 Laptop (14-Inch) |
|---|
| Display Type Options | 14-in WQUXGA (3840 x 2400) IPS low power AOFT touch with Dolby Vision™ DCI P3 100%, 500 nits, Eyesafe® certified low blue-light emissions, antiglare, antireflective, antismudge |
|---|
| Processor & Graphic Options | Intel® Core™ i5-1240P Processor (1.7GHz Max Turbo Frequency Up to 4.4GHz) 12 MB Intel® Smart Cache, 12-Cores, 16 Threads
Intel Iris Xe Graphics |
|---|
| Operating System | Windows OS |
|---|
| #1 | Intel® Core™ i5-1235U Processor (0.9GHz / 1.3GHz to 3.3GHz / 4.4GHz Max Frequency Turbo Up) 12 MB Intel® Smart Cache, 10-Cores ( 2 P-Cores + 8 E-Cores), 12-Threads
Intel Iris Xe Graphics |
|---|
| #2 | Intel® Core™ i5-1240P Processor (1.2GHz / 1.7GHz Up to 3.3GHz / 4.4GHz Max Turbo Frequency) 12 MB Intel® Smart Cache, 12-Cores (4 P-Cores + 8 E-Cores), 16 Threads
Intel Iris Xe Graphics |
|---|
| #3 | Intel® Core™ i5-1245U Processor (1.2GHz / 1.6GHz Up to 3.3GHz / 4.4GHz Max Turbo Frequency) 12 MB Intel® Smart Cache, 10-Cores ( 2 P-Cores + 8 E-Cores), 12 Threads
Intel Iris Xe Graphics |
|---|
| #4 | Intel® Core™ i5-1250P Processor (1.2GHz / 1.7GHz Up to 3.3GHz / 4.4GHz Max Frequency Turbo) 12 MB Intel® Smart Cache, 12-Cores (4 P-Cores + 8 E-Cores), 16-Threads
Intel® Iris® Xe Graphics eligible |
|---|
| #5 | Intel® Core™ i7-1255U Processor (1.2GHz / 1.7GHz up to 3.5GHz / 4.7GHz Max Turbo Frequency), 12 MB Intel® Smart Cache, 10-Cores ( 2 P-Cores + 8 E-Cores), 12 Threads
12 MB Intel® Smart Cache |
|---|
| #6 | Intel® Core™ i7-1260P Processor (1.5GHz / 2.1GHz up to 3.4GHz / 4.7GHz Max Turbo Frequency) 18 MB Intel® Smart Cache, 12-Cores (4 P-Cores + 8 E-Cores), 16 Threads
Intel® Iris® Xe Graphics eligible |
|---|
| #7 | Intel® Core™ i7-1265U Processor (1.3GHz / 1.8GHz Up to 3.6GHz / 4.8GHz Max Turbo Frequency) 10 MB Intel® Smart Cache, 10-Cores ( 2 P-Cores + 8 E-Cores), 12 Threads
Intel Iris Xe Graphics |
|---|
| #8 | Intel® Core™ i7-1270P Processor (1.6GHz / 2.2GHz Up to 3.5GHz / 4.8GHz Max Turbo Frequency) 18 MB Intel® Smart Cache, 12-Cores (4 P-Cores + 8 E-Cores), 16 Threads
Intel Iris Xe Graphics |
|---|
| #9 | Intel® Core™ i7-1280P Processor (1.3GHz / 1.8GHz Up to 3.6GHz / 4.8GHz Max Turbo Frequency) 24 MB Intel® Smart Cache, 14 Cores (6 P-Cores + 8 E-Cores), 20 Threads
Intel® Iris® Xe Graphics |
|---|
| Chipset | Intel® SoC (System on Chip) platform |
|---|
| Memory | 8GB RAM / 16GB RAM / 32GB RAM |
|---|
| Audio | 1 x 1/8-in / 3.5 mm Headphone/Microphone Input/Output
Built-In Speakers |
|---|
| Storage | 256GB SSD / 512GB SSD / 1 TB SSD / 2TB SSD / 4TB SSD |
|---|
| Camera | Full HD Webcam with Privacy Shutter
Webcam User-Facing |
|---|
| Monitor Support | Supports up to 4 independent displays (native display and 3 external monitors via Thunderbolt™ and HDMI®) / Thunderbolt™ supports up to 5K@60Hz / HDMI® supports up to 4K@60Hz |
|---|
| Wireless | Wi-Fi:- Wi-Fi 6E (802.11ax)
MU-MIMO Support |
|---|
| Card Reader | No card reader |
|---|
| Ports and Connectors | 2 x USB Type-A (USB 3.1 / USB 3.2 Gen 1)
USB Type-C |
|---|
| Audio Chip | High Definition (HD) Audio, Realtek® ALC3306 codec |
|---|
| Speakers | Stereo speakers, 2W x2 woofers and 0.8W x2 tweeters, Dolby Atmos® |
|---|
| Microphone | Quad-microphone array, 360° far-field, Dolby Voice® |
|---|
| Camera OPTIONS | FHD 1080p + IR discrete, with privacy shutter, MIPI, fixed focus, Computer Vision / FHD 1080p + IR hybrid, with privacy shutter, fixed focus / FHD 1080p, with privacy shutter, fixed focus / HD 720p, with privacy shutter, fixed focus |
|---|
| Battery | Integrated Li-Polymer 57Wh battery, supports Rapid Charge (charge up to 80% in 1hr) with 65W AC adapter |
|---|
| Power Adapter OPTIONS | 45W USB-C® (2-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz // 45W USB-C® (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz // 65W USB-C® (2-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz // 65W USB-C® (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz // 65W USB-C® slim (2-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz // 65W USB-C® slim (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz // No power adapter |
|---|

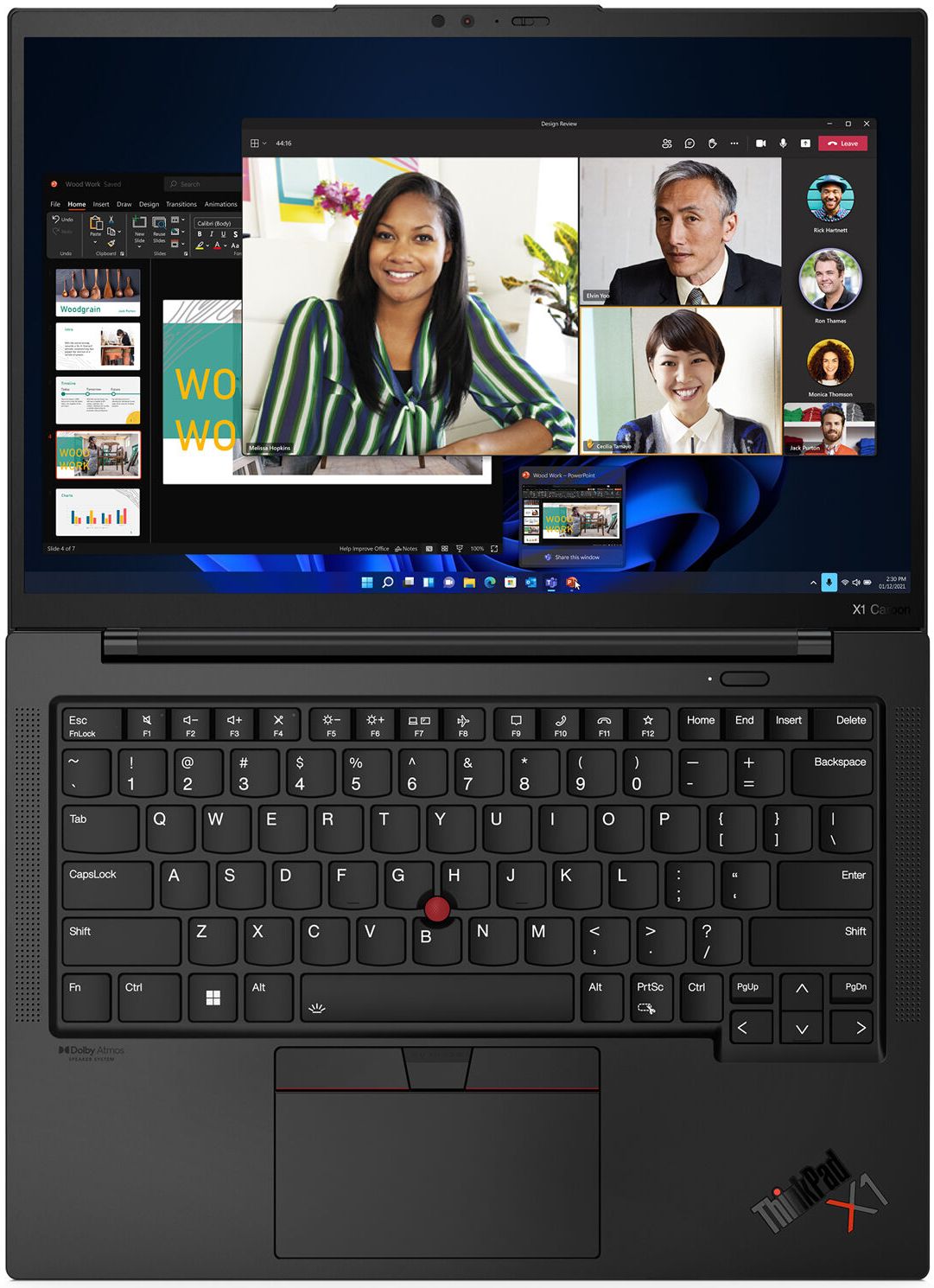

| Keyboard | 6-row, spill-resistant, air intake design, multimedia Fn keys with Unified Communications controls |
|---|
| Keyboard Backlight | LED backlight |
|---|
| UltraNav™ | TrackPoint® pointing device and glass surface multi-touch touchpad, 56 x 110 mm (2.20 x 4.33 inches) |
|---|
| Ethernet | No onboard Ethernet |
|---|
| WLAN + Bluetooth® OPTIONS | Intel® Wi-Fi® 6 AX201, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.1 (Bluetooth® 5.2 hardware ready) // Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.1 (Bluetooth® 5.2 hardware ready) |
|---|
| WWAN OPTIONS | Wireless WAN upgradable to 4G (with antenna ready) // Fibocom L860-GL-16, 4G LTE CAT16, MIMO 4x4, M.2 card // Fibocom FM350-GL, 5G Sub-6 GHz, M.2 Card, with embedded eSIM functionality // No support |
|---|
| SIM Card OPTIONS | Gemalto eSIM card (physical) // No physical SIM card inbox |
|---|
| NFC OPTIONS | Near Field Communication // No support |
|---|

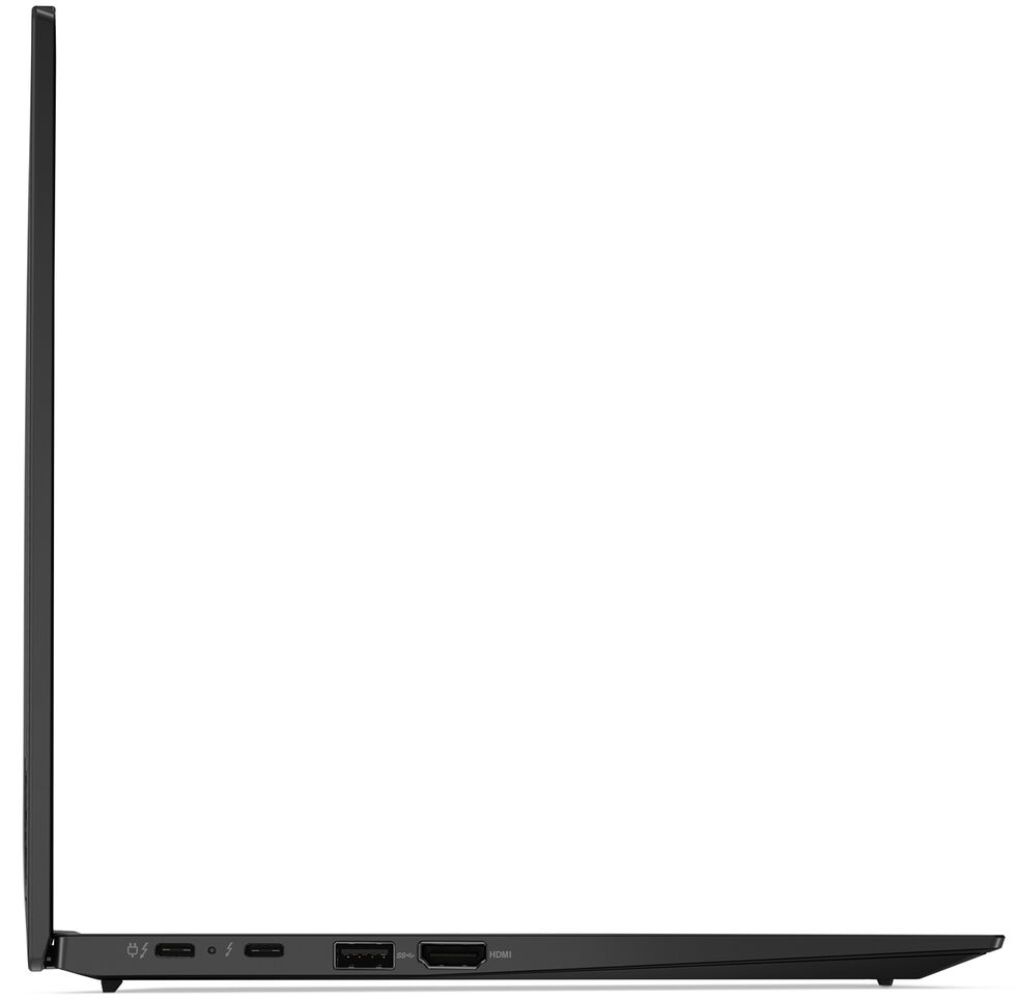

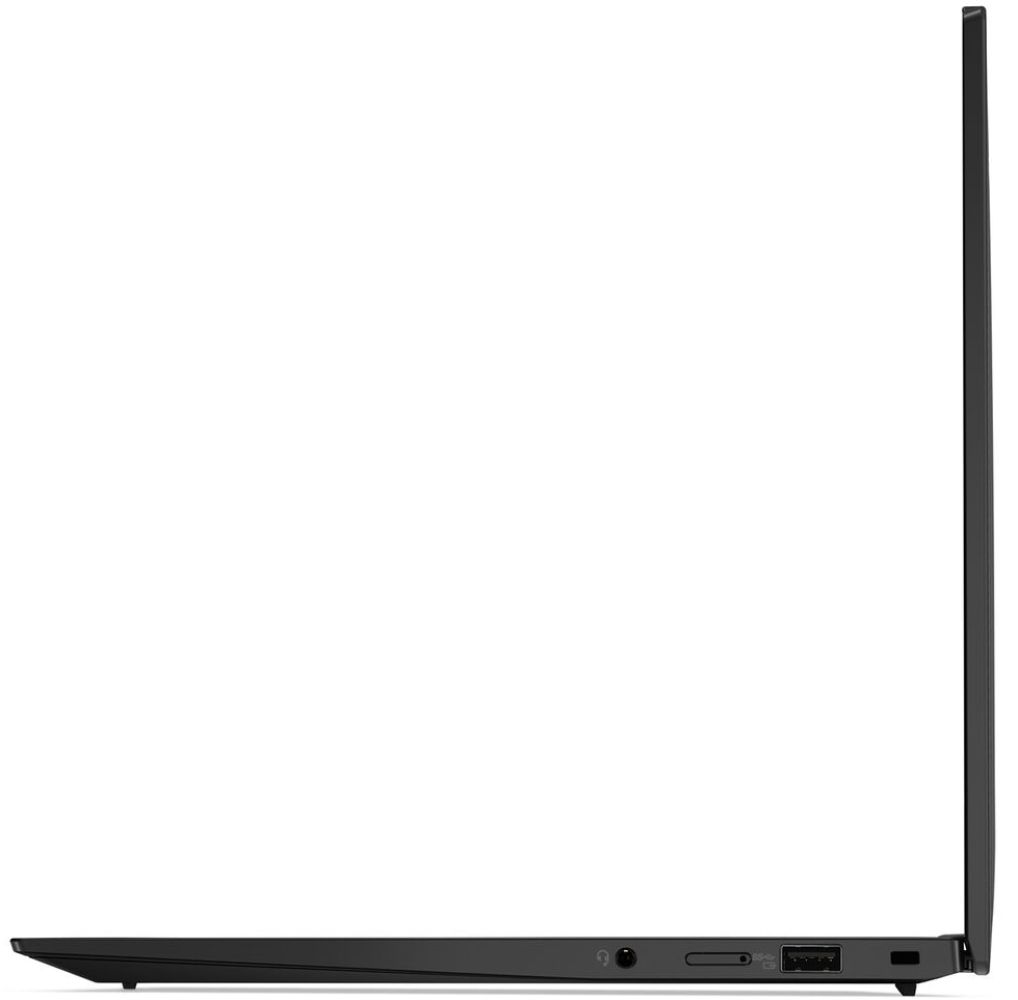

| Standard Ports | 1x USB 3.2 Gen 1
1x USB 3.2 Gen 1 (Always On)
2x Thunderbolt™ 4 / USB4® 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort™ 1.4a)
1x HDMI® 2.1, up to 4K/60Hz
1x Headphone / microphone combo jack (3.5mm) |
|---|
| Docking | Various docking solutions supported via Thunderbolt™ / USB-C®. |
|---|
| Security Chip | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
|---|
| Physical Locks | Kensington® Nano Security Slot™, 2.5 x 6 mm |
|---|
| Smart Card Reader | No smart card reader |
|---|
| Fingerprint Reader | Touch style fingerprint reader integrated in power button, match-on-chip |
|---|
| BIOS Security | Supervisor password
Power-on password
System management password
NVMe® password
Certificate based BIOS authentication
FIDO (Fast Identity Online) authentication
Self-healing BIOS |
|---|
| Other Security | Privacy Guard with Privacy Alert (models with ThinkPad® Privacy Guard display)
(Optional) IR camera for Windows® Hello (facial recognition)
Camera privacy shutter
Glance by Mirametrix®
(Optional) Computer Vision-based User Presence Sensing including lock on leave
Tile ready |
|---|
| Green Certifications | ENERGY STAR® 8.0
EPEAT™ Gold Registered
ErP Lot 3
RoHS compliant
TCO Certified 9.0 |
|---|
| Mil-Spec Test | MIL-STD-810H military test passed |
|---|
| Other Certifications | (Optional) Intel® Evo™ Platform
(Optional) Eyesafe® Certified
(Optional) TÜV Rheinland® Low Blue Light (Hardware Solution)
TÜV Rheinland® Dynamic Privacy Filter (DPF) Certification (Privacy Guard models) |
|---|
| Dimensions | (Models with 720p camera) - 315.6 x 222.5 x 14.95 mm (12.43 x 8.76 x 0.59 inches) // (Models with other camera) - 315.6 x 222.5 x 15.36 mm (12.43 x 8.76 x 0.60 inches) |
|---|
| Weight | Starting at 1.12 kg (2.48 lbs) |
|---|
